Tascam DR-40XP Four Track Field Recorder

Full Description

Capture clear sound without constant level checks

Recording in changing environments can make level setting difficult. The DR-40XP solves this with 32-bit float recording, which preserves detail across both quiet and loud sources. You can capture everything from subtle ambience to louder performances without distortion, reducing the need for retakes.

This approach also speeds up your workflow, as you spend less time adjusting gain and more time focusing on the performance. Multiple recording formats including WAV and MP3 give you flexibility for different projects, so you can adapt your files for editing sharing or archiving with ease.

Adapt your setup with flexible microphones and inputs

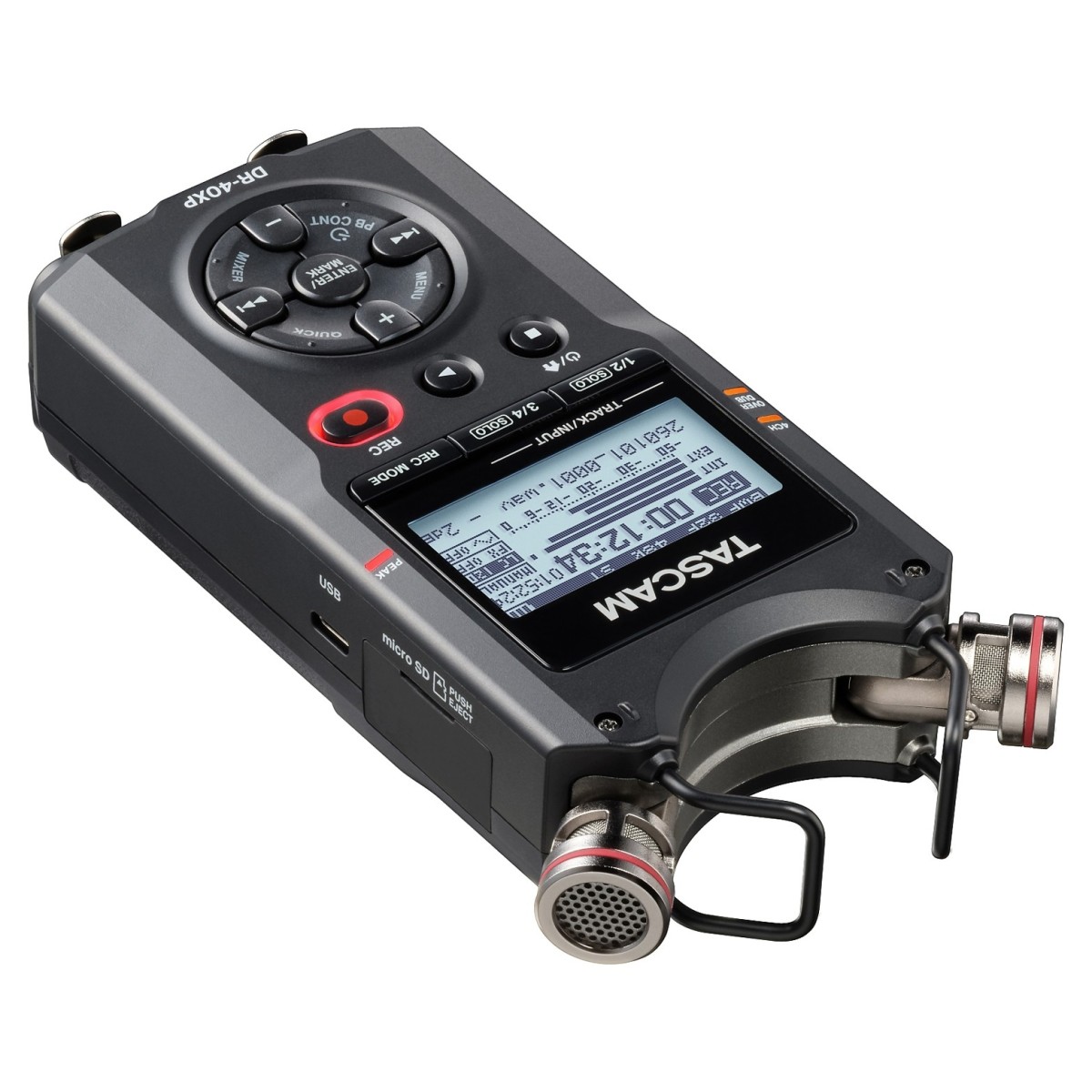

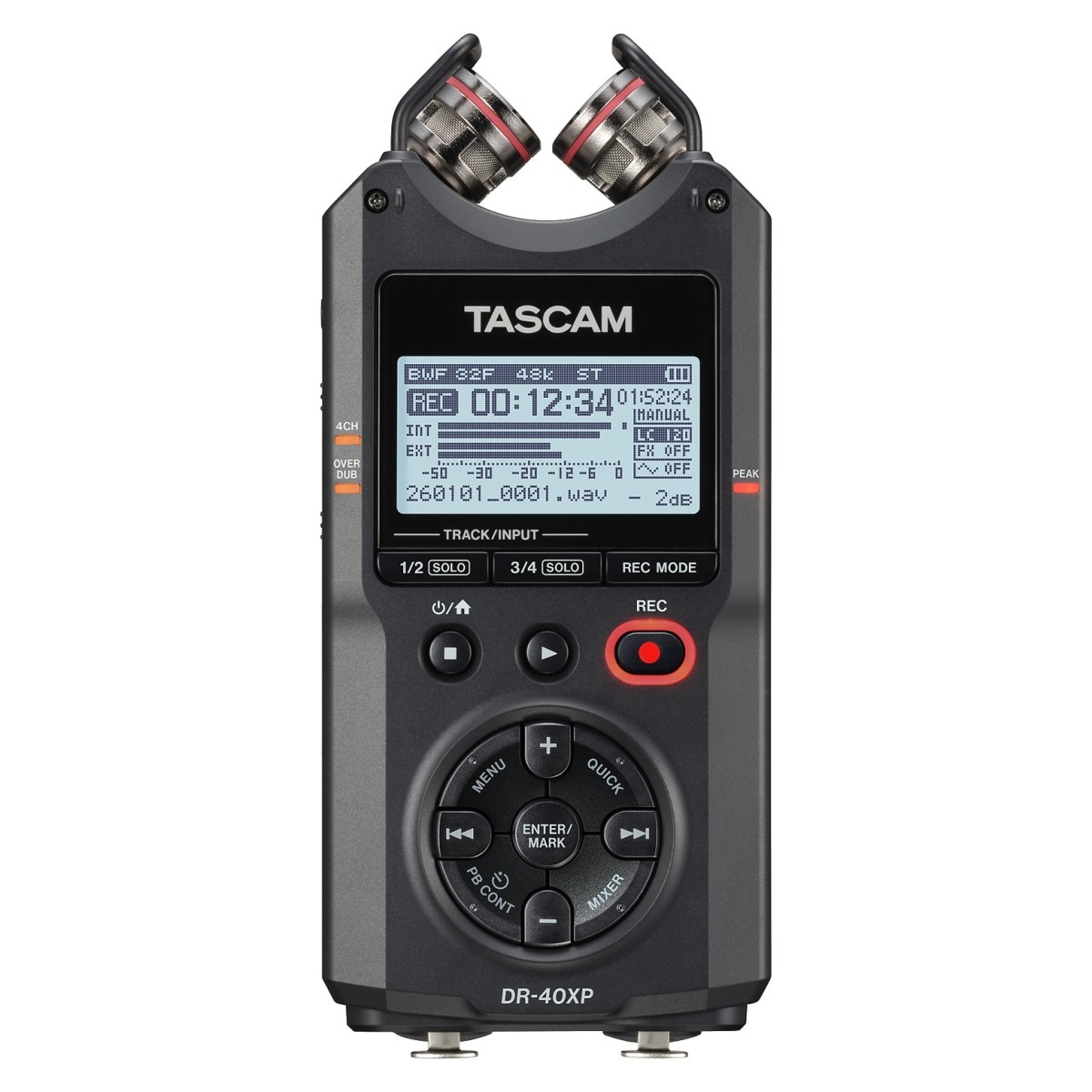

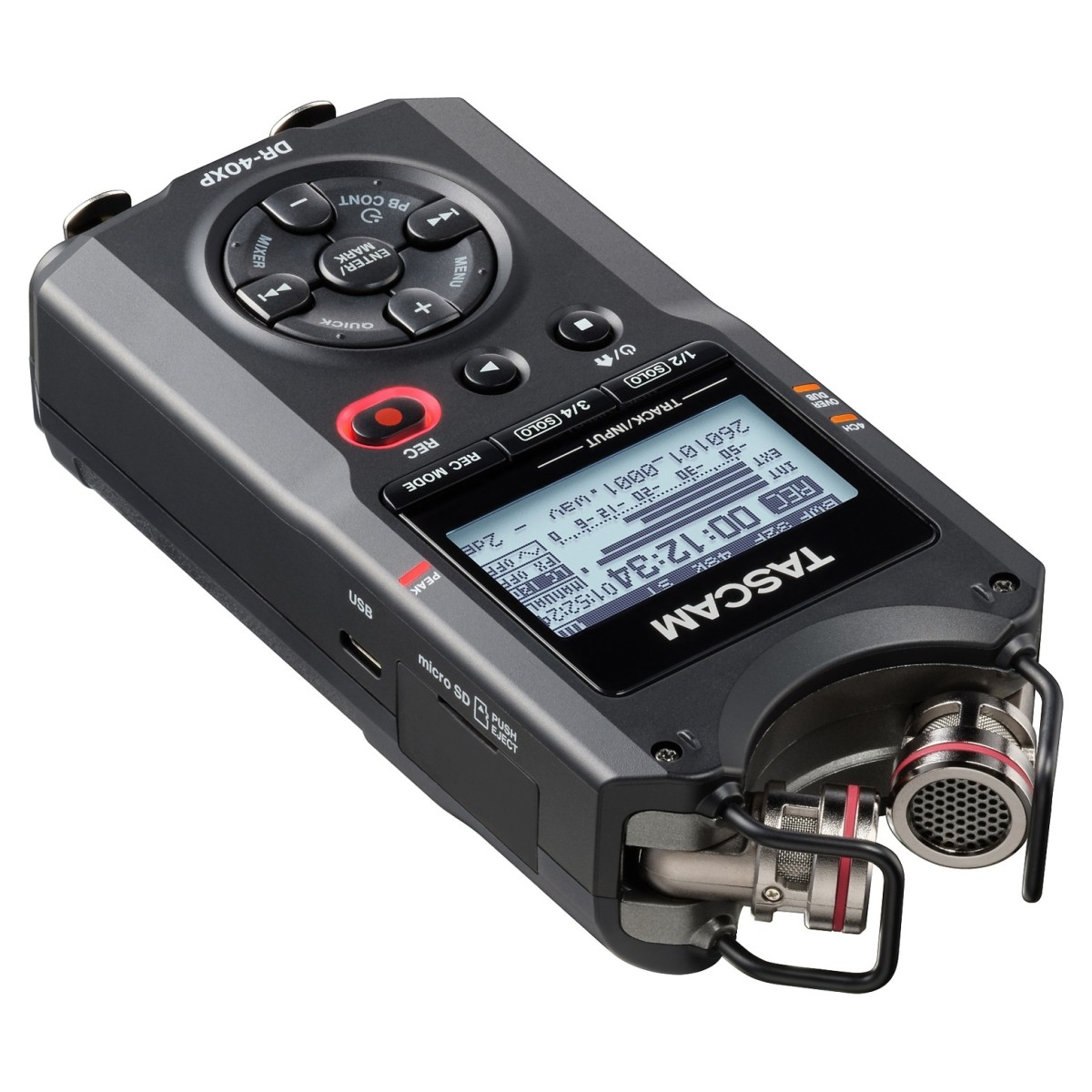

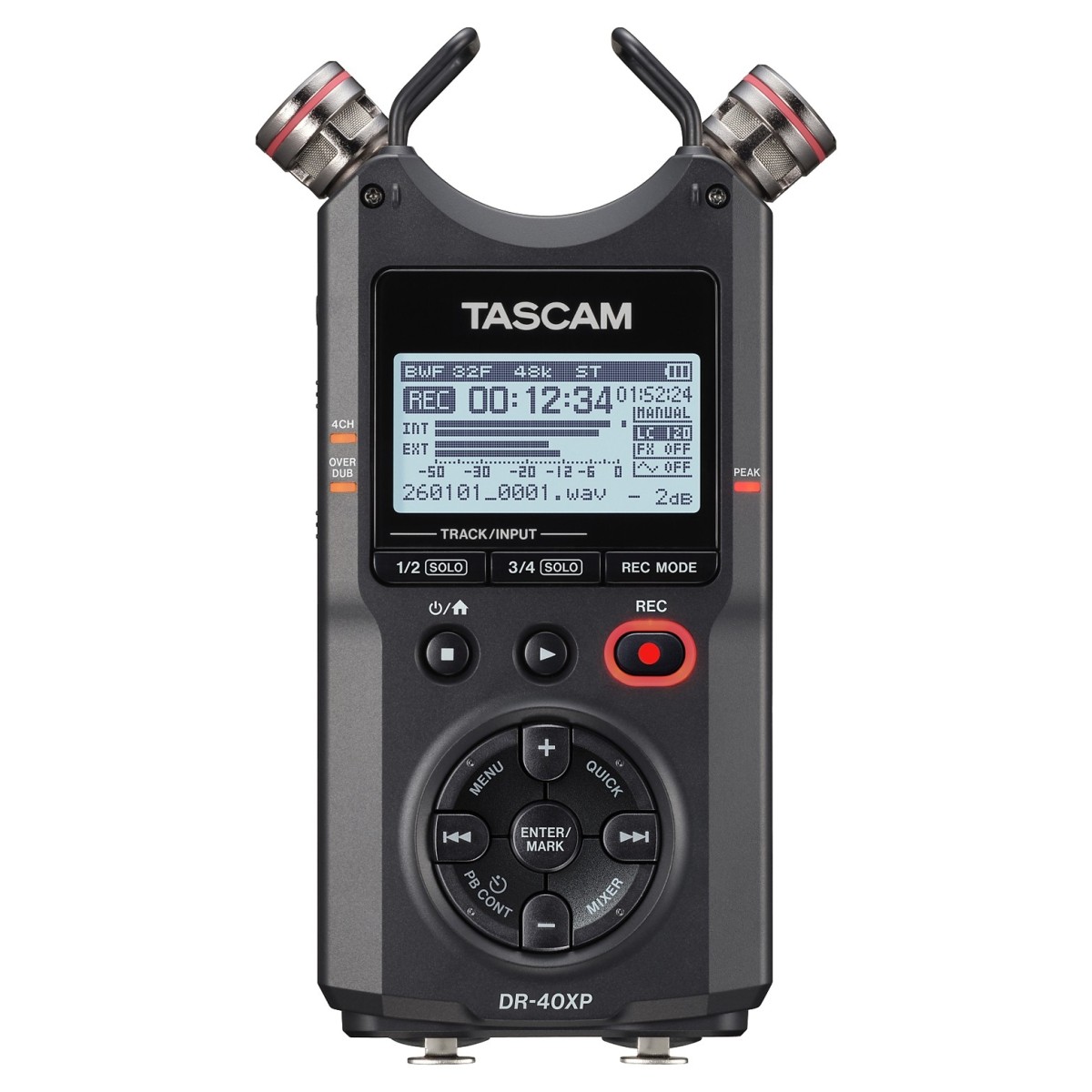

The built-in stereo condenser microphones can be positioned in A-B or X-Y configurations, letting you choose between a wider stereo spread or a more focused image. This makes it easier to match your setup to the recording situation, from interviews to live music.

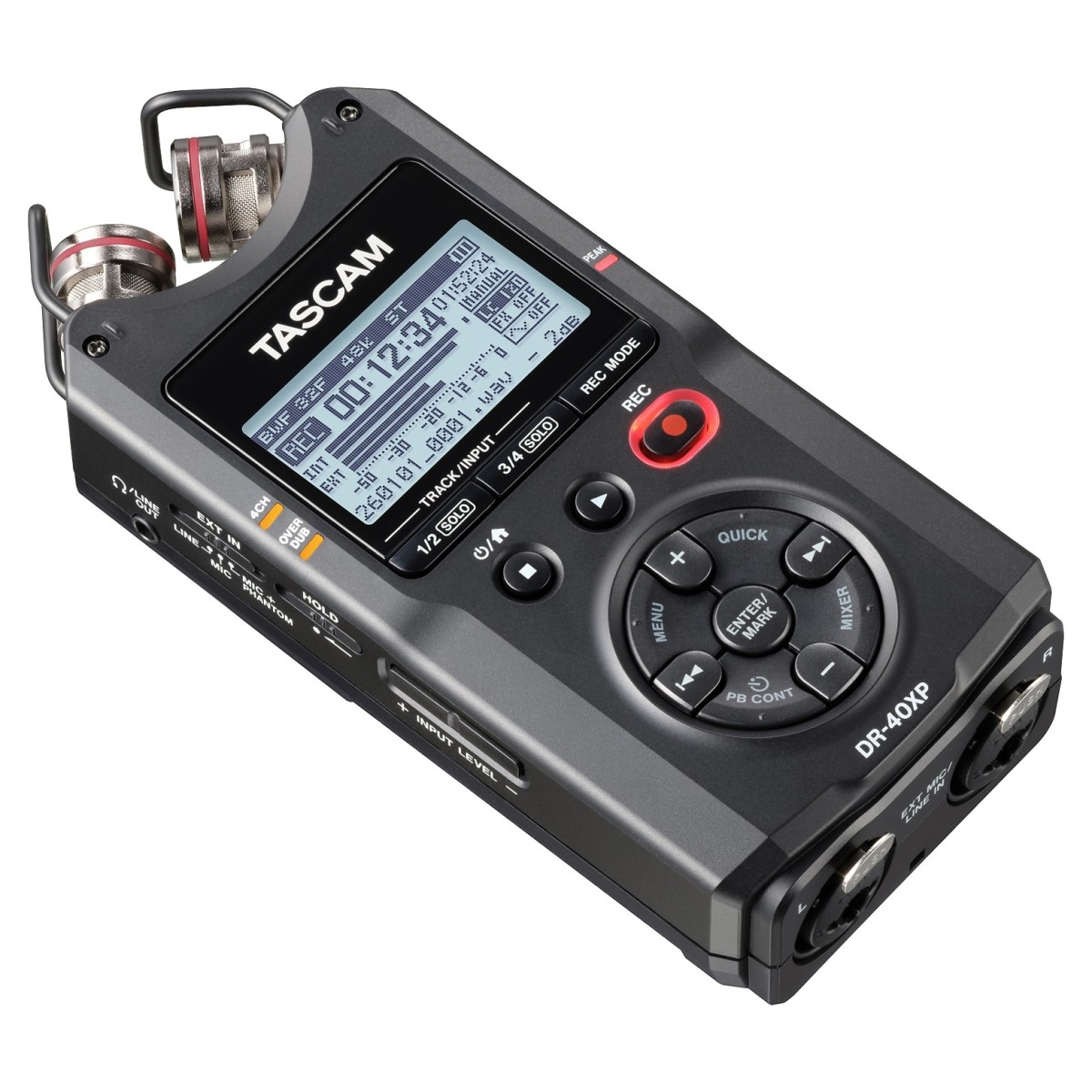

Alongside this, two XLR/TRS combo inputs allow connection of external microphones or line-level sources. With phantom power available, you can use condenser microphones for detailed recordings. You can even combine internal and external sources to create four-track recordings, giving you greater control during mixing and production.

Rely on low-noise performance for detailed recordings

Clear recordings depend on clean signal paths, and the DR-40XP uses HDDA microphone preamps to keep noise levels low. With an equivalent input noise of minus 126 dBu, it captures subtle details without adding unwanted hiss. This is especially useful when recording acoustic instruments dialogue or environmental sounds where clarity matters.

Improved clock accuracy also supports stable recordings, helping maintain consistent timing when syncing with video. Together, these features give you dependable results across a wide range of recording situations.

Record and produce wherever you are

Portability is central to the DR-40XP. Its compact design and long battery life of up to 30 hours make it suitable for extended sessions away from the studio. Whether you are recording in the field or at a live event, you can keep working without frequent interruptions.

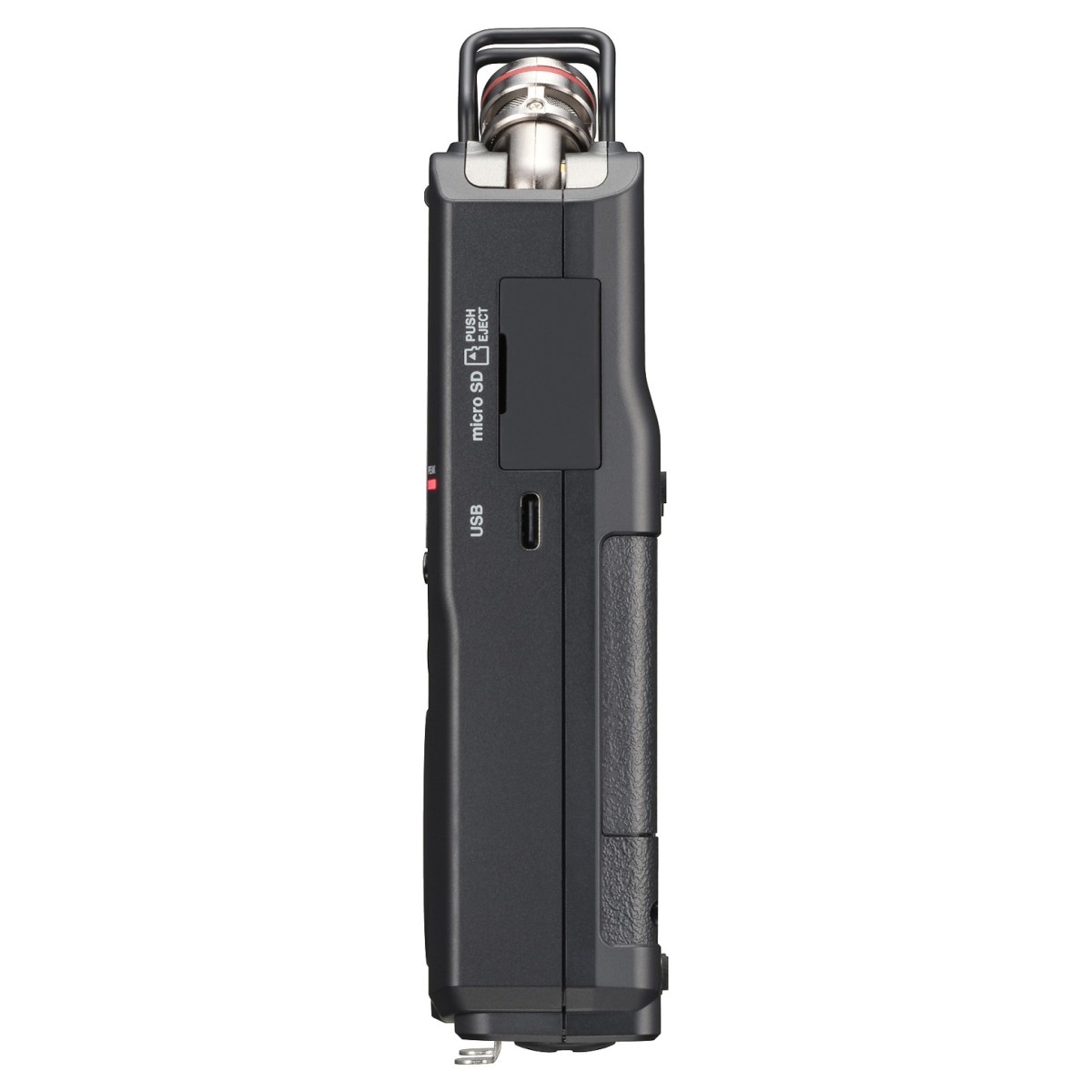

The USB-C connection allows the recorder to function as a two-in two-out audio interface, so you can plug directly into a computer or iOS device and start producing straight away. With support for large capacity microSD cards, you also have plenty of space to store longer recordings and multiple takes.

Features

• Portable four track recorder designed for music video and field use
• 32 bit float recording for clean audio without clipping or level adjustment
• Supports sample rates up to 96 kHz for detailed sound capture
• Adjustable stereo microphones with A B and X Y configurations
• High quality low noise HDDA mic preamps for clear recordings
• Dual XLR TRS inputs with phantom power for external microphones
• Handles sound pressure levels up to 125 dB for loud environments
• Simultaneous use of built in and external inputs for four track recording
• USB C connection for audio interface use with computers and mobile devices
• Long battery life reaching up to around 30 hours of operation
• Compatible with microSD cards up to 512 GB for extended recording
• Supports WAV and MP3 formats across multiple resolutions
• Overdub overwrite and mixdown functions for flexible production
• Built in reverb effects and chromatic tuner for creative control
• Low cut filter and automatic level control options for cleaner recordings
• Pre recording buffer captures audio before recording starts
• Slate tone and accurate clock improve audio video synchronization

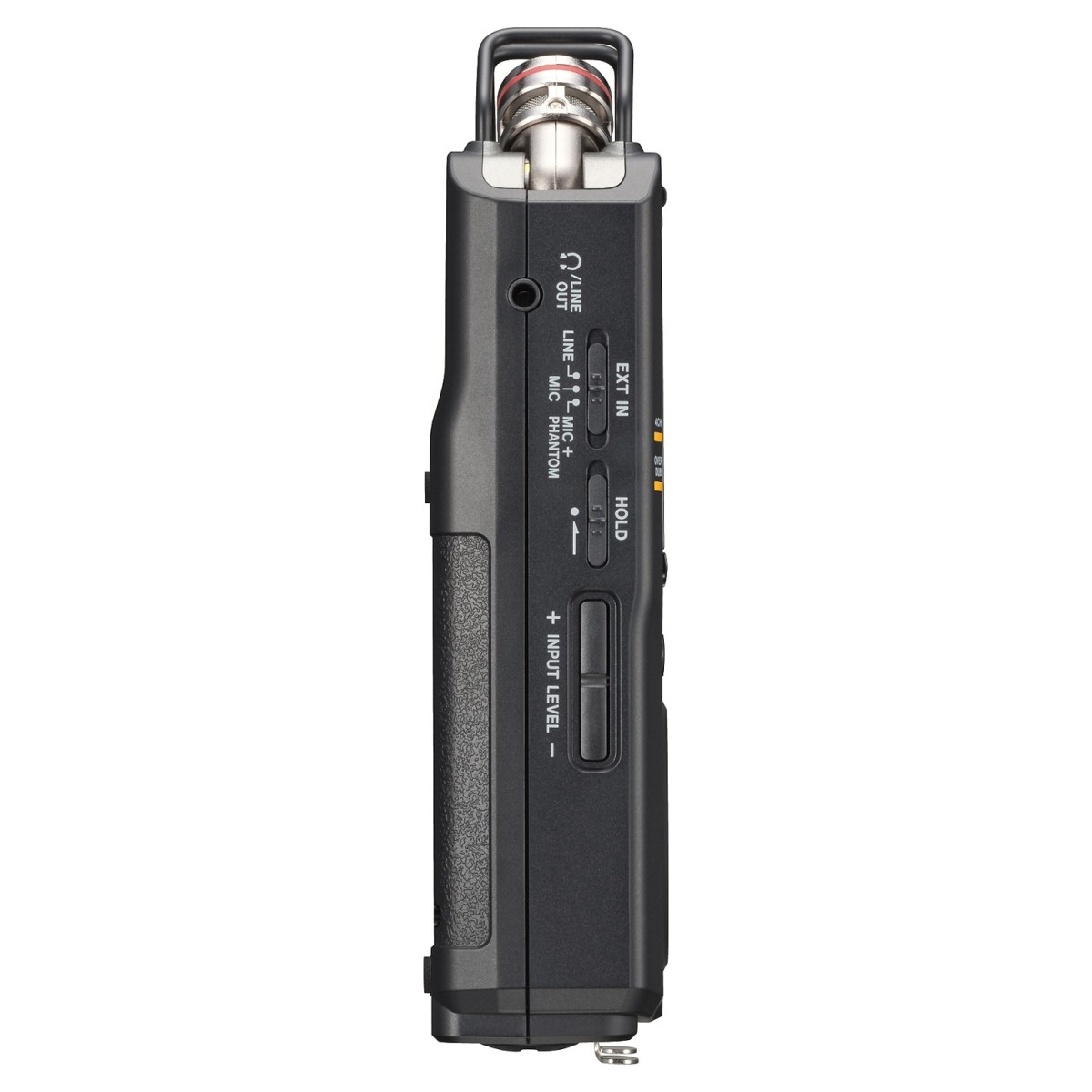

• Mini jack line output and headphone monitoring with level control
• Playback tools include speed adjustment looping and playlist support

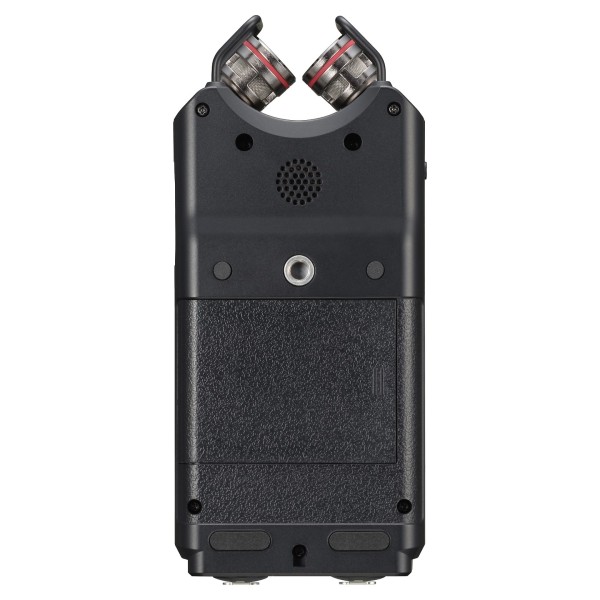

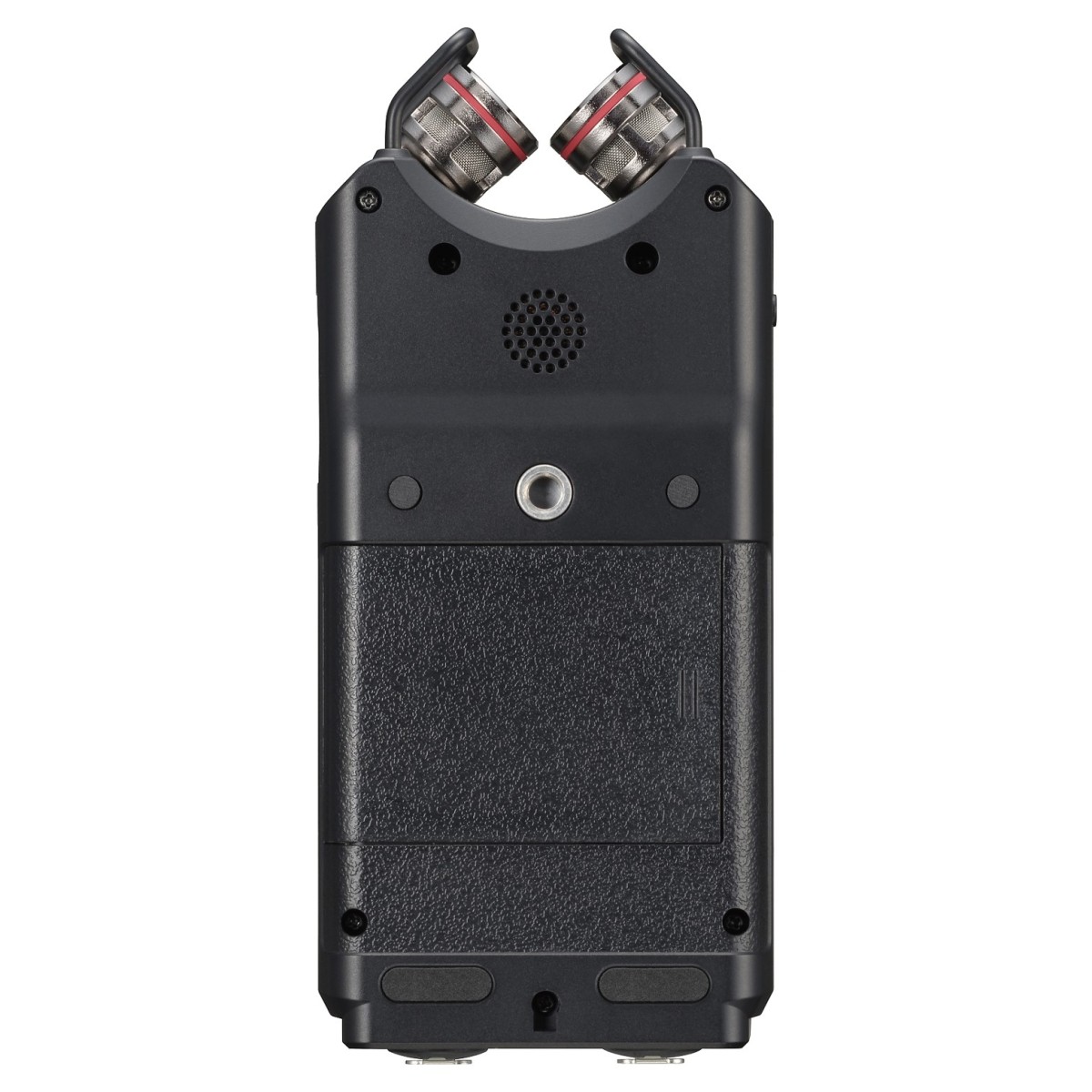

• Compact durable design with tripod mount for versatile placement

Specifications

• Recording Media: MicroSD, MicroSDHC, MicroSDXC (Up To 512 GB)
• Recording/Playback Formats: WAV/BWF: Sampling Rate: 44.1 KHz, 48 KHz, 96 KHz; Quantisation Bit Depth: 16 Bit, 24 Bit, 32 Bit Float. MP3: Sampling Rate: 44.1 KHz, 48 KHz; Bit Rate: 32/64/96/128/192/256/320 Kbit/S
• Number Of Channels/Tracks: 4 Input Channels (2 × Stereo), 4 Recording Tracks
• External Mic/Line Inputs: XLR/TRS Combo Connectors
• Mic Mode: Mic Or Mic + Phantom Selected
• Maximum Input Level (Mic): +5 DBu
• Minimum Input Level (Mic): –84 DBu
• Input Impedance (Mic): ≥2.4 KΩ
• Phantom Power: 24 V, 48 V (XLR Connectors Only)
• Line Mode: Line Selected
• Maximum Input Level (Line): +24 DBu
• Nominal Input Level (Line): +4 DBu (Gain At Minimum)
• Input Impedance (Line): ≥10 KΩ
• Headphones/Line Output: 3.5-mm Stereo Mini Jack
• Maximum Output Level: 0 DBV (10 KΩ Load)
• Nominal Output Level: −20 DBV (10 KΩ Load)
• Maximum Output Power: 20 MW + 20 MW (32 Ω Load)
• Output Impedance: 2.2 Ω
• Recommended Headphone Impedance: 16–600 Ω
• Built-In Mono Loudspeaker: 0.3 W
• Usb Port: USB-C Connector
• Transfer Format: USB 2.0 High Speed Mass Storage Class, USB 1.1 Full Speed Audio Class
• Usb Audio: Sampling Frequency: 44.1 KHz, 48 KHz; Quantization Bit Depth: 24 Bit; Number Of Inputs/Outputs: 2/2 Channels
• EIN: ≤–126 DBu
• Frequency Response: 20 Hz – 20 KHz +0/−1 DB (44.1 KHz), 20 Hz – 22 KHz +0/−1 DB (48 KHz), 20 Hz – 40 KHz +0/−1 DB (96 KHz)
• Total Harmonic Distortion: ≤0.008 %
• Dynamic Range: ≥112 DB
• Battery Operation Time (Alkaline): 20:30 Playback; 18:00 Recording (16 Bit); 16:30 Recording (32 Bit Float); 16:00 MP3 Recording; 05:00 4-Track Phantom
• Battery Operation Time (NiMH): 16:00 Playback; 16:00 Recording (16 Bit); 16:00 Recording (32 Bit Float); 13:00 MP3 Recording; 05:00 4-Track Phantom
• Battery Operation Time (Lithium): 30:30 Playback; 29:30 Recording (16 Bit); 25:30 Recording (32 Bit Float); 24:30 MP3 Recording; 10:00 4-Track Phantom
• Power Requirements: 3 AA Batteries (Alkaline, NiMH Or Lithium), USB Bus Power (5 V, 0.5 A), AC Adapter (Tascam PS-P520U, Sold Separately)
• Power Consumption: 1.7 W (Maximum)
• Current Draw: 0.34 A (Maximum)
• Dimensions: 70 mm × 155 mm × 35 mm (Mics Folded In), 90 mm × 155 mm × 35 mm (Mics Folded Out)
• Weight: 213 g (Without Batteries), 282 g (With Batteries)
• Operating Temperature Range: 0–40 °C
• Product Code: DR-40XP
